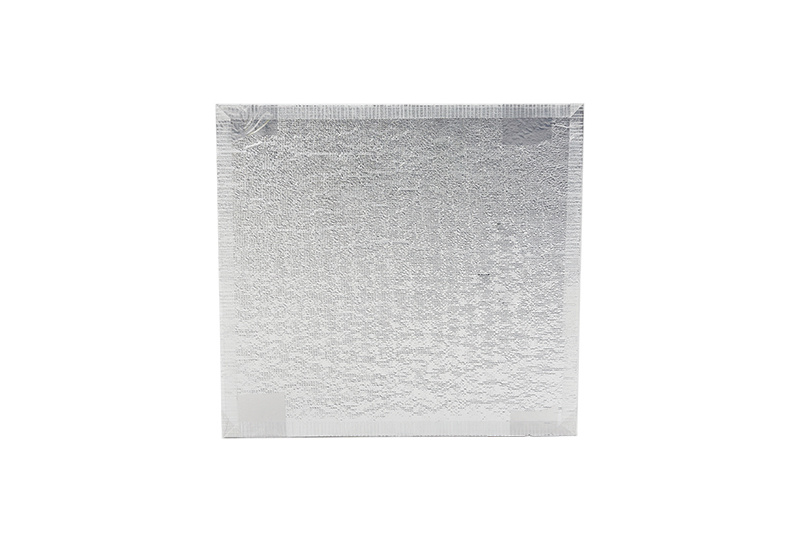

Fumed Silica VIP
MEVAC® fumed silica vacuum insulation panel(VIP) , is a new type of thermal insulation solution, combined with nano-microporous technology and vacuum technology with thermal conductivity less than 0.0045W/(m·K) and insulation performance up to 5-10 times that of conventional insulation material, which can help you to meet a very high thermal requirement, therefore, is considered the next generation of insulation products.The typical fields of applications are cold chain packaging and construction insulation.
Advantages of MEVAC® Fumed Silica VIP
With low thermal conductivity less than 0.0045W/(m·K).
With smooth and flat surface, edges and corners whereas individual elements can be joined together almost seamlessly.
With excellent heat resistance, cold resistance, ozone resistance, air aging resistance.
Provides solutions for areas that previously would have remained un-insulated because of insufficient space available.
With higher strength and combustion performance of Class A.
High level of thermal efficiency with minimal thickness.
Customized sizes according to customer’s requirement.
With longer service life time than conventional insulation materials.
100% inspected before delivery.
No after-sales worries.
Technical Data
|
Thermal Conductvity @24°C |
Continuous working temperature range |
Density |
Maximum Dimensions (L x W) |
Thickness |
|
［W/(m·K)］ |
[℃] |
[kg/m³] |
[mm] |
[mm] |
|
< 0.0045 |
-86~+90℃ |
185±10% |
1400*800 |
5-50 |
 |
 |
 |
Keywords：
Fumed Silica VIP
Related Products
There is no relevant data for the time being, please add it backstage!
MEVAC® glass fiber vacuum insulation panel is based on glass fiber core material, a new energy-efficient and cost-effective insulation material made of three major parts: glass fiber core material, getter material/desiccant and high barrier lamination. With an excellent initial thermal conductivity of lower than 0.0020 W/m·K, the thermal resistance of our vacuum insulation panel based on glass fiber core material is 10-25 times higher than conventional insulation material and even more. Furthermore, compared with traditional PU insulation materials, energy-saving, cost-effective and environment-friendly vacuum insulation panel contains no ODS (ozone depleting substances) in its manufacturing process and has been widely applying to thermal insulation products such as refrigerators, freezers, refrigerated trucks, cold storages, cold chain shipping containers/boxes, ice storage tanks, etc.
MEVAC® polyurethane foam vacuum insulation panel(PUF-VIP) is composed of glass fiber vacuum insulation core and PU foam coating, which is an innovative insulation material with a moldable appearance, thermal insulation properties and high resistance to mechanical damage. Compared with glass fiber vacuum insulation panel, PUF-VIP with the ease of installation and use has smoother surfaces , edges and corners for the better protection of the glass fiber vacuum insulation panel core material.
MEVAC® M200 fumed silica core is a high performance nano-microporous insulation material mainly made of fumed silica, which is suitable for insulation in medium to low temperature environments. Vacuum insulation panel(VIP) made of M200 fumed silica core material is able to reach an extremely low thermal conductivity less than 0.0045W/m·K, standing out one of the best insulation materials at present.
METHERM® M1000 series products are microporous insulation panel) with extremely low thermal conductivity and excellent mechanical properties. The formulation is an opacified blend of reinforced filament fumed(pyrogenic) silica. The maximum application temperature of the M1000 series can reach 1100℃. The thermal insulation performance of the microporous insulation panels is several times better than the best ceramic fiber board and calcium silicate board, especially at higher temperatures.
