What is Vacuum Insulation Panel(VIP)?

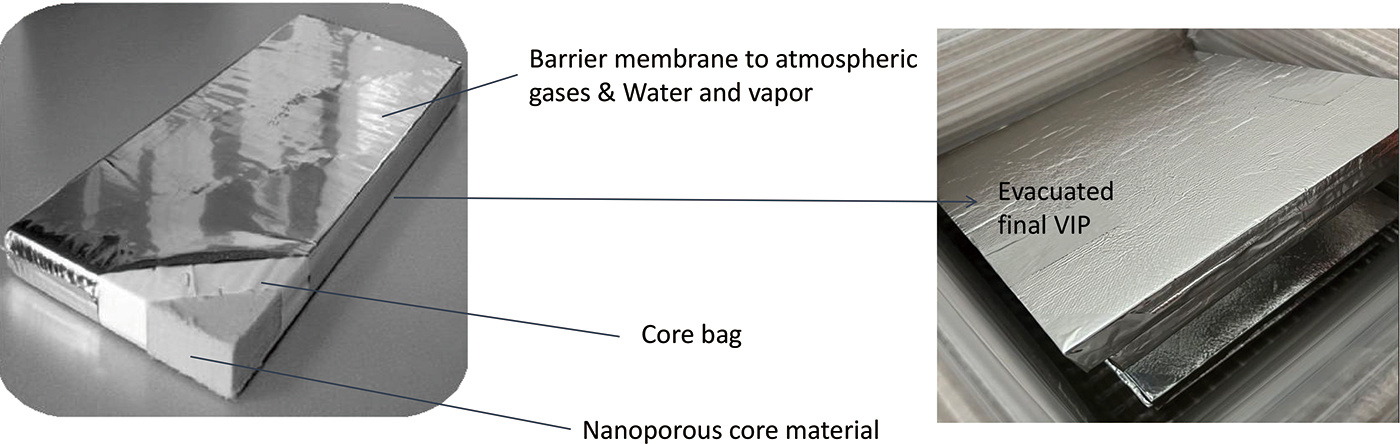

A vacuum Insulation Panel (VIP) is a very advanced new type of insulation solution that helps meet very high thermal requirements! It is a form of thermal insulation consisting of a gas-tight enclosure surrounding a rigid core from which the air has been evacuated. Under a vacuum, or in the absence of air, thermal convection cannot exist; only radiation can pass through a vacuum. Therefore, VIPs give outstanding thermal conductivity for the thinnest possible solution and are considered the next generation of insulation products.
VIPs are used in construction, commercial and domestic refrigeration units, and insulated shipping containers/ temperature-controlled packaging to provide far better insulation performance than conventional insulation materials.
MEVAC® fumed silica vacuum insulation panel(VIP) , is a new type of thermal insulation solution, combined with nano-microporous technology and vacuum technology with thermal conductivity less than 0.0045W/(m·K) and insulation performance up to 5-10 times that of conventional insulation material, which can help you to meet a very high thermal requirement, therefore, is considered the next generation of insulation products. The typical fields of applications are cold chain packaging and construction insulation.
MEVAC® glass fiber vacuum insulation panel is based on glass fiber core material, a new energy-efficient and cost-effective insulation material made of three major parts: glass fiber core material, getter material/desiccant and high barrier lamination. With an excellent initial thermal conductivity of lower than 0.0020 W/m·K, the thermal resistance of our vacuum insulation panel based on glass fiber core material is 10-25 times higher than conventional insulation material and even more. Furthermore, compared with traditional PU insulation materials, energy-saving, cost-effective and environment-friendly vacuum insulation panel contains no ODS (ozone depleting substances) in its manufacturing process and has been widely applying to thermal insulation products such as refrigerators, freezers, refrigerated trucks, cold storages, cold chain shipping containers/boxes, ice storage tanks, etc.
MEVAC® polyurethane foam vacuum insulation panel(PUF-VIP) is composed of glass fiber vacuum insulation core and PU foam coating, which is an innovative insulation material with a moldable appearance, thermal insulation properties and high resistance to mechanical damage. Compared with glass fiber vacuum insulation panel, PUF-VIP with the ease of installation and use has smoother surfaces , edges and corners for the better protection of the glass fiber vacuum insulation panel core material.
MEVAC® M200 fumed silica core is a high performance nano-microporous insulation material mainly made of fumed silica, which is suitable for insulation in medium to low temperature environments. Vacuum insulation panel(VIP) made of M200 fumed silica core material is able to reach an extremely low thermal conductivity less than 0.0045W/m·K, standing out one of the best insulation materials at present.
